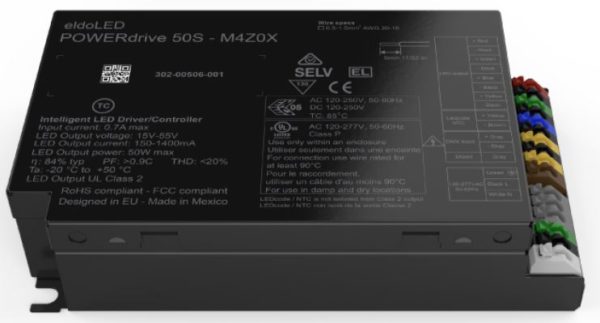

POWERdrive 50S-M4Z0X

PW50S-M4Z0X : POWERdrive AC, 50W, DMX/RDM, 4 control channels, constant current, 4x55V outputs, side feed, square metal

Any further information, please contact us

By using the new POWERdrive product you will experience the easiest way of integration of a DMX LED driver into your RGBW LED luminaire. If you’re designing your next generation RGBW wall washer or downlight, and don’t have any electronics experience or knowledge in the company, the POWERdrive product will be the solution. It’s ready to go with industry standard push-in connectors for installation, global certification programs supported on safety and performance, and supporting a wide operating window for the LED selection of your choice.



  • Quality of Light performance in any DMX application
  • Optical isolation in the DMX interface improves the robustness against incorrect wiring and mishandling. The isolation also improves the immunity of the driver, and the connected DMX network, against surge events during, i.e. lightning strikes
  • Short lead times; with delivery in just days
  • Start-up time meets CA Title 24 requirements; A startup time of < 500ms


  • 120 – 277 VAC input voltage
  • Constant current LED output
  • 4 channel DMX driver
  • Isolated DMX interface
  • 150 – 1400mA programmable LED outputs
  • Dimensions: 130 (L) x 76 (W) x 30.5 (H) mm


  • Europe: CE & ENEC-05
  • North America: UL Listed, Class P
  • Australia & New Zealand: RCM

Input characteristics
Nominal input voltage range AC 120 – 250V (ENEC), 120 – 277V (UL)
Absolute input voltage range AC 108 – 305V
Nominal input voltage range DC 120 – 250V
Maximum input current AC 0.5A @ 120V ; 0.26A @ 230V ; 0.22A @ 277V
Input frequency range 50 – 60Hz
Efficiency at full load 86%
Power factor at full load >0.95
THD at full load <20%
Maximum inrush current AC <100mA²s @ 120V ; <100mA²s @ 230V ; <100mA²s @ 277V
Surge protection 2kV differential mode (DM) ; 2kV common mode (CM)
Maximum standby power <0.5W

Output characteristics
Maximum LED output power 50W
Number of LED outputs 4 (UL Class 2)
Programmable LED output current range 150 – 1400mA per LED output. The cumulative current across all LED outputs shall not exceed 3400mA at any point in time during normal operation
LED output type programmable in 1mA steps via DMX terminal and FluxTool
LED output current tolerance +/- 5% at programmed LED output current
LED output voltage range 2 – 55V

Control characteristics
Control channels 1 – 4 (default)
Multiple LED outputs can be mapped onto a single DMX group. For more
details, see the Design Guide.
Control protocol DMX/RDM
Dimming range 100% – 0.1%
Dimming curve options Logarithmic (default) ; Linear ; Soft-Linear ; Square
Dimming method Hybrid HydraDrive

Dimensions 13 × 7,6 × 3 cm
