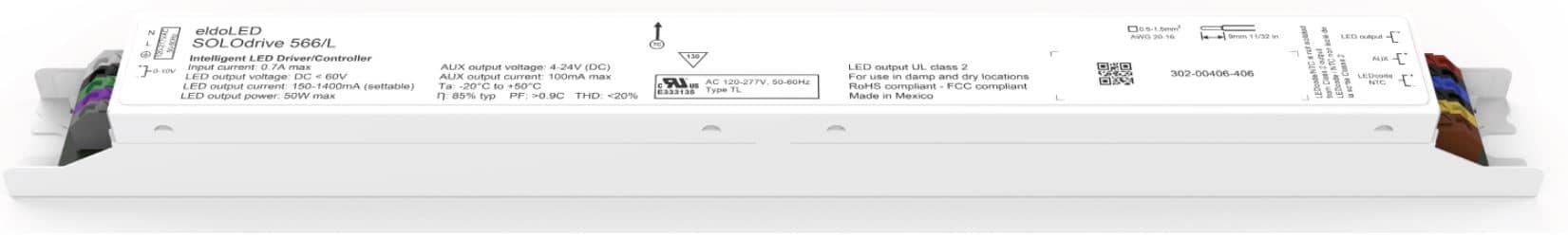

SOLOdrive 566/L
SL0566L : SOLOdrive, 50W, 0-10V + AUX, 1 control channel, constant current,1x 55V output, side feed
Any further information, please contact us
SOLOdrive 566/L delivers 50W and is 0-10V compatible. As all SOLOdrives, the 566/L smoothly dims all the way down to dark.
Features
- Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
- Auxiliary power output
- LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
- NTC interface for robust thermal management
Benefits
- Industry-best dimming performance for your fixture/application
- Wide application area thanks to fully configurable dimming curve
Certifications
SL0566L3
- CE
- EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547, EN 60929 Annex E
- UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Isolated, Class 2 output.
- ENEC by DEKRA
- EL
SL0566L4
- UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Isolated, Class 2 output.
Input characteristics
Nominal input voltage range AC 120 – 277V (UL)
Absolute input voltage range AC 108 – 305V
Maximum input current 0.7A @ 120V / 60Hz ; 0.3A @ 277V / 60Hz
Input frequency range 50 – 60Hz
Efficiency at full load 85%
Power factor at full load >0.95
THD at full load <20%
Maximum inrush current < 200mA²s @ 120V / 60Hz ; < 200mA²s @ 277V / 60Hz
Surge protection 2kV differential mode (DM) ; 2kV common mode (CM)
Maximum standby power 0.5W ; If no load connected to the AUX output
Output characteristics
Maximum LED output power 50W
Number of LED outputs 1 (UL Class 2)
Programmable LED output current range 150 – 1400mA
LED output type Programmable in 1mA increments within specified current range
LED output current tolerance +/- 5% at programmed LED output current
LED output voltage range 2 – 55V
Auxiliary output 4 – 24V DC, 100mA max
Auxiliary voltage settable? Yes
Auxiliary voltage resolution 1V (below 16V) ; 2V (above 16V)
Control characteristics
Control channels 1
Control protocol 0-10V ; LEDcode
Dimming range 100% – 0.1%
Dimming curve options Logarithmic (default) ; Linear ; Soft-Linear ; Square
Dimming method Hybrid HydraDrive
0-10V current draw 0.45mA
Time delay to standby <30s
Dimensions | 32 × 3 × 2,6 cm |
---|
