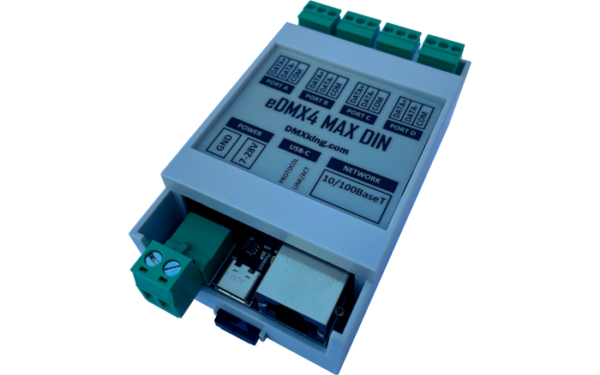

eDMX4 MAX DIN

eDMX4 MAX DIN : The most compact 4 port sACN/E1.31 and Art-Net to DMX512 node available. DMX512 IN/OUT independently configurable ports with advanced stream merging and built in show recording for standalone operation.

205.5 € HT / 246.6 € TTC
Temporarily out of stock.
Any further information, please contact us

Warranty: 2 Years

  • Wide input power range 7-28Vdc
  • Power input via USB-C
  • 4x DMX512 OUT or DMX512 IN non-isolated
  • Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
  • Merge Art-Net + DMX input -> DMX output(s)
  • Merge 2x DMX input -> DMX output(s)
  • sACN Priority takeover for multi-tier controller arrangements
  • Recording and playback of shows to microSD card (not supplied) – See eDMX MAX Record / Playback manual
  • Real time clock with battery (not supplied) backup for intermittent power standalone playback
  • Art-Net I, II, 3 & 4 + sACN/E1.31 protocol support including universe synchronization
  • Static or DHCP IPv4 networking
  • The eDMX4 MAX DIN is integrated DIN rail and wall mount with OEM board also available for integration into your designs
Weight 0.00 kg
Dimensions 0.00 × 0.00 × 0.00 cm
