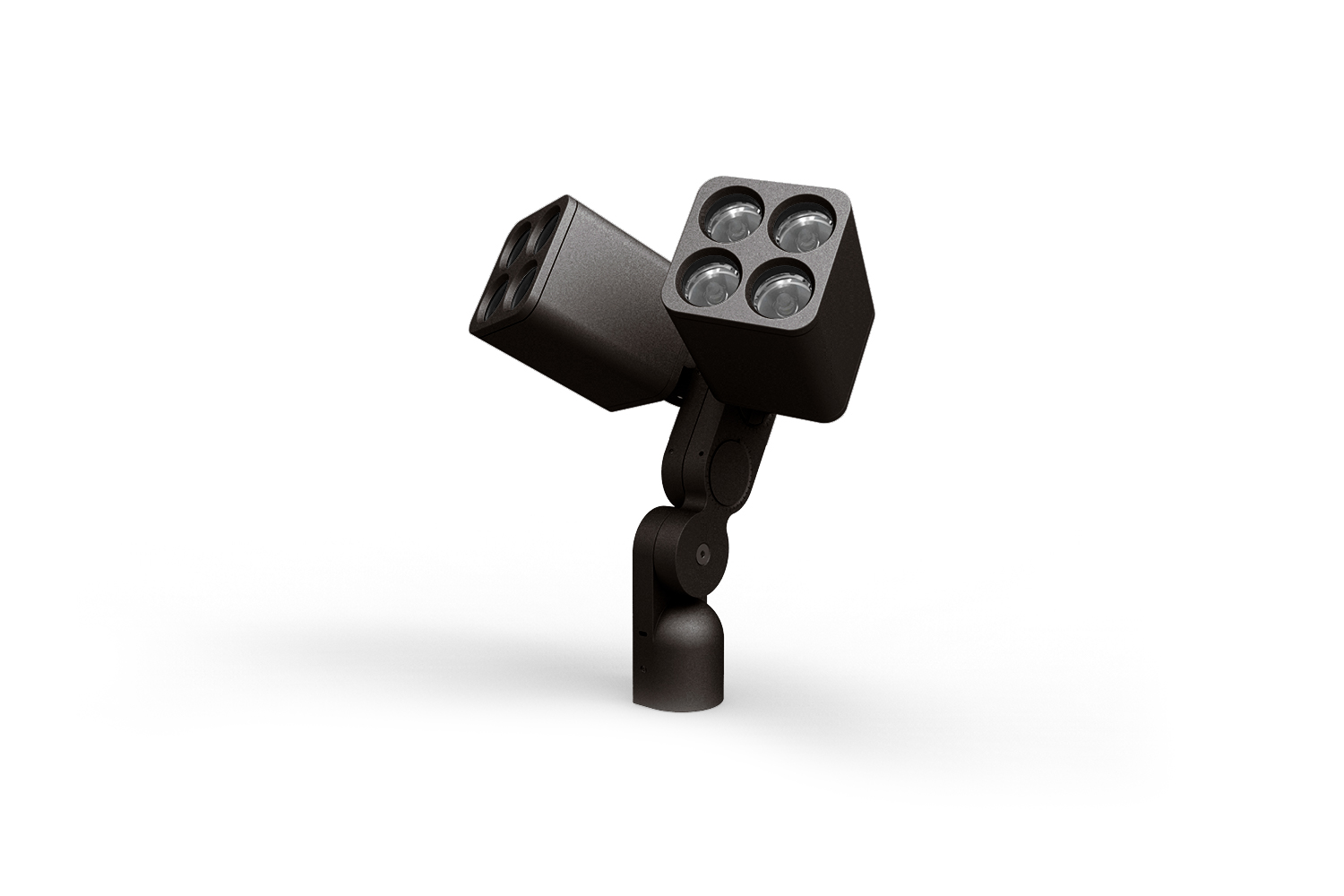

RISE F170 Duo

RISE F170 Duo pairs up two RISE F170 Single units using a single-point bracket. From one single installation point, Lighting Designers can increase lumen power (up to 8700 lumens) and/or aim each light fixture in different directions. Each fixture head can be specified with a unique beam angle and lumen output for application specific needs. This powerful and compact unit is ideal for spot, accent, landscape, façade, and floodlight applications.

RISE F170 Duo is available in horizontal or vertical configurations.


Any further information, please contact us
  • High CRI 90+
  • CCT: 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
  • Mono color options available in Red, Green, Blue, and Amber
  • Beam angles:
    • Spot & Accent: 5° / 10° / 15° / 20°
    • Flood: 40° / 60° / 70° / 90°
    • Elliptical: 15°x60° / 30°x60° / 60°x15° / 60°x30°
  • Wattage and lumen package options :
    • Low output: up to 3342 lumens
    • Medium output: 6046 lumens
    • High output: up to 8900 lumens
  • Aiming adjustment: 180° Tilt and 360° pan using a single screw
  • IP66
  • Efficacy: up to 107 Lm/W
  • Multi-volt: 110V-277V input voltage
  • Finish options: black, bronze, silver, white, or custom color
  • Custom color finish: select a custom color from a RAL color deck.
  • Marine Grade Finish – UL1598A
