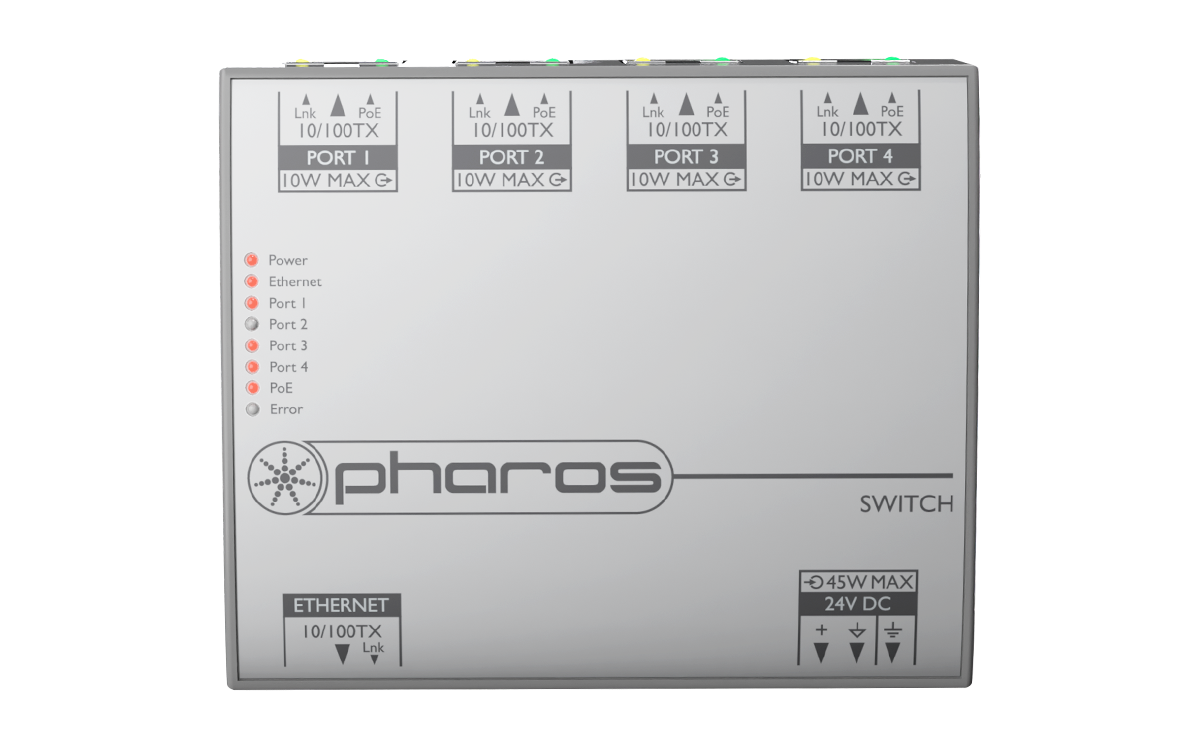

Pharos Switch – PAC S
Pharos Switch – PAC S unmanaged PoE Ethernet switch with 4 PoE ports for powering and connecting Pharos devices. DIN rail mounting, 24V DC supply and easy plug-and-play installation.
Any further information, please contact us
The Pharos Switch – PAC S is an unmanaged PoE Ethernet switch designed to simplify network connectivity and power distribution for Pharos devices. It allows connection and power supply for up to four PoE-compatible devices such as Pharos controllers, remote devices and touch interfaces, while providing an additional non-powered Ethernet port for computers, local networks or other devices.
Using Power over Ethernet (PoE IEEE 802.3af) technology, the Pharos Switch – PAC S delivers both network data and electrical power through a single Ethernet cable, making it easier to install remote devices wherever they are required.
The switch operates immediately with no commissioning or configuration required. It automatically detects connected devices and provides the appropriate power level. Each PoE port includes resettable fuse protection, providing improved safety and reliability for professional lighting installations.
Designed for permanent installations, the Pharos Switch – PAC S features a compact DIN rail enclosure, installer-friendly connectors and 24/7 operational reliability. It provides a simple and efficient PoE networking solution for professional lighting control systems.
- Unmanaged PoE Ethernet switch designed for Pharos systems
- 4 RJ45 PoE ports for connecting and powering compatible devices
- Additional non-PoE Ethernet port for computer, network or external devices
- Supports IEEE 802.3af Type 1:
- Class 1
- Class 2
- Class 0
- up to 10 W per PoE port
- Automatic power detection for connected devices
- Resettable fuse protection against overcurrent conditions
- Network interface:
- RJ45 Ethernet
- 10/100Base-TX
- Power supply: 24V DC
- Maximum power consumption: 45 W depending on load
- Mounting:
- DIN rail
- keyhole mounting options
- Dimensions: 108 × 90 × 40 mm
- Weight: 0.3 kg
- Protection rating: IP40
- Operating temperature: 0°C to 50°C
- Humidity: 10–90% relative humidity, non-condensing
- Warranty: 5 years
- Certifications:
- CE
- UKCA
- UL/cUL
