TPS

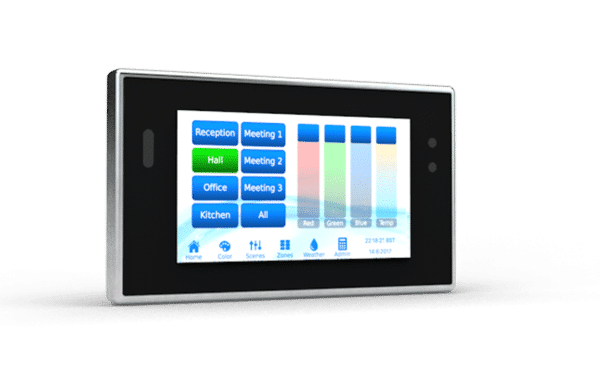

The Pharos TPS (Touch Panel Station) is an elegant interface with a customisable, 4.3” capacitive touch screen, that works with any Pharos Controller.

The configuration software Pharos Designer 2 is vailable for both Windows and Mac, it’s free todownload from Pharos’ website.


Any further information, please contact us

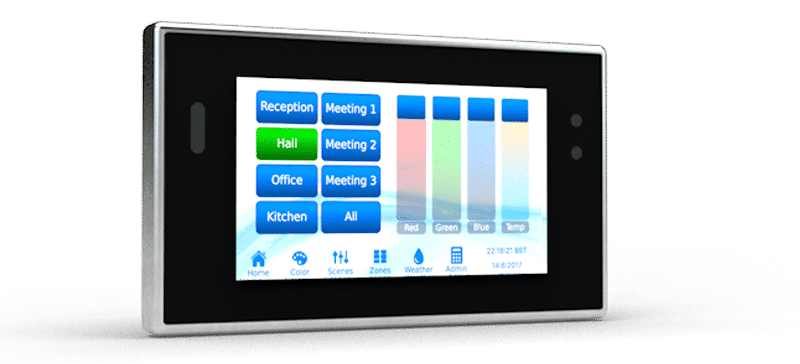

The Pharos TPS (Touch Panel Station) is an elegant interface with a customisable, 4.3” capacitive touch screen, that works with any Pharos Controller.

The TPS is available in a range of different coloured bezels and overlays. Install is easy and convenient as the TPS only requires a single Power-over-Ethernet (PoE) network connection.

The customisable touch screen user interface lets you create multiple pages of controls, configure their appearance and get immediate visual feedback. The controls then allow you to trigger and adjust scenes, timelines, overrides and a myriad of other functions that are part of your control system.

Capabilities

  • Orientation : Portrait or landscape
  • Layouts : Free editable layouts
  • Pages : Any number of pages
  • Navigation : Convenient and custom navigation via configurable navigation bars
  • Fonts : Custom font support, including fonts with extended character sets e.g. Chinese, Korean, Japanese
  • Themes : Wide selection of themes available to download, or create your own with Designer’s theme editor
  • Controls : A wide array of customisable buttons, sliders, colour pickers, labels, keypads and clocks
  • Flexible integration : Fully integrated with Pharos Trigger, so button states, graphics, and captions can change according to any number of preset triggers
  • Infra-red : Learning IR allows any standard remote control to be used to activate button presses/state changes
  • Secure access : Keypad for PIN-code entry; multiple user levels
  • Commissioning : Commissioned with Pharos Designer 2

Specifications

  • Certifications : CE compliant, ETL/cETL listed
  • Power : PoE (IEEE802.3af, Class 2) 4W typical
  • Required : Any Pharos Controller
  • Data Storage : Removable SD Card (supplied)
  • Temperature : 0°C to 50°C (32°F to 122°F)
  • Humidity : 10-50% relative, non-condensing
  • Ingress : IP40
  • Physical : Wall mounted, partly recessed in UK 2-gang 35mm or custom US 2.5” backbox (supplied separately)
  • Shipping : 20 x 15 x 12 cm (8″ x 6″ x 5″) ; 0.6 kg (1.3 lbs)
  • Recovery : Hardware watchdog and recessed reset button
  • Warranty : 5 years

Interfaces

  • Ethernet : RJ45 socket for 10/100Base-TX Ethernet with Link/Data LEDs; Static IP or DHCP
  • Touchscreen : 4.3” capacitive touch; 480×272 24bpp; 340 cd/m2; magnetic overlay
  • IR Sensor : Learning IR sensor for remote control
  • Temperature : Built-in ambient temperature sensor
